Reusable Structural Screws
Designed for Performance.
Engineered for Reuse.
Built in Canada 🍁
HEXDRIVE PRO reusable screws are the next evolution of the original ICF screw design by John Maguire for ICF Pro Store Inc. The design and manufacturing process have been re-established and refined to deliver greater strength, longer life, and superior holding power for demanding construction applications.
🍁 Canadian manufactured for superior quality control and consistency.
• Shaft size increased from #9 to #10 for increased strength and load capacity.
• Integrated washer head allows angle screwing and eliminates shaft-weakening knurl.
• Redesigned deep hex head ensures perfect fit with supplied hex bit and reduces cam-out.
• Optimized thread design for superior holding power in thin plastic layers.
• High/low thread design suitable for concrete applications.
• Proprietary coating lasts up to 15× longer than standard zinc for extended reuse
KEY IMPROVEMENTS
Available Sizes
2” and 3” lengths
Reusable Applications
ICF bracing & block reinforcement, concrete forming, scaffolding, framing
Why HEXDRIVE PRO™
Designed specifically for reuse, HEXDRIVE PRO™ reduces waste, lowers material costs, and delivers unmatched durability and performance on-site.
Built for professionals who expect fast installs, fewer failures and hardware that lasts.
HEXDRIVE PRO™ Reusable Screws
Each screw is designed with an Integrated washer head which allows angle screwing and eliminates shaft-weakening knurl. The redesigned deep hex head ensures perfect fit with the supplied magnetic hex bit and reduces cam-out. This design is especially ideal for locating and removing the screw after the concrete has been poured. Although these screws are specifically optimized for use with ICF blocks, they consistently perform reliably in any concrete forming setup, scaffolding and framing. This makes them a versatile and dependable choice across a wide range of job sites and applications.
2”
and
3” LENGTHS
Our Proprietary Coating
The HEXDRIVE Pro reusable screw features a proprietary coating that lasts 15 times longer than standard, zinc-galvanised construction that guarantees long-term strength and durability and reuse. Our coating is tested in salt spray test lasting 3000 hours or more!
(Standard zinc-galvanised coating testing at only 100 hours in salt spray)

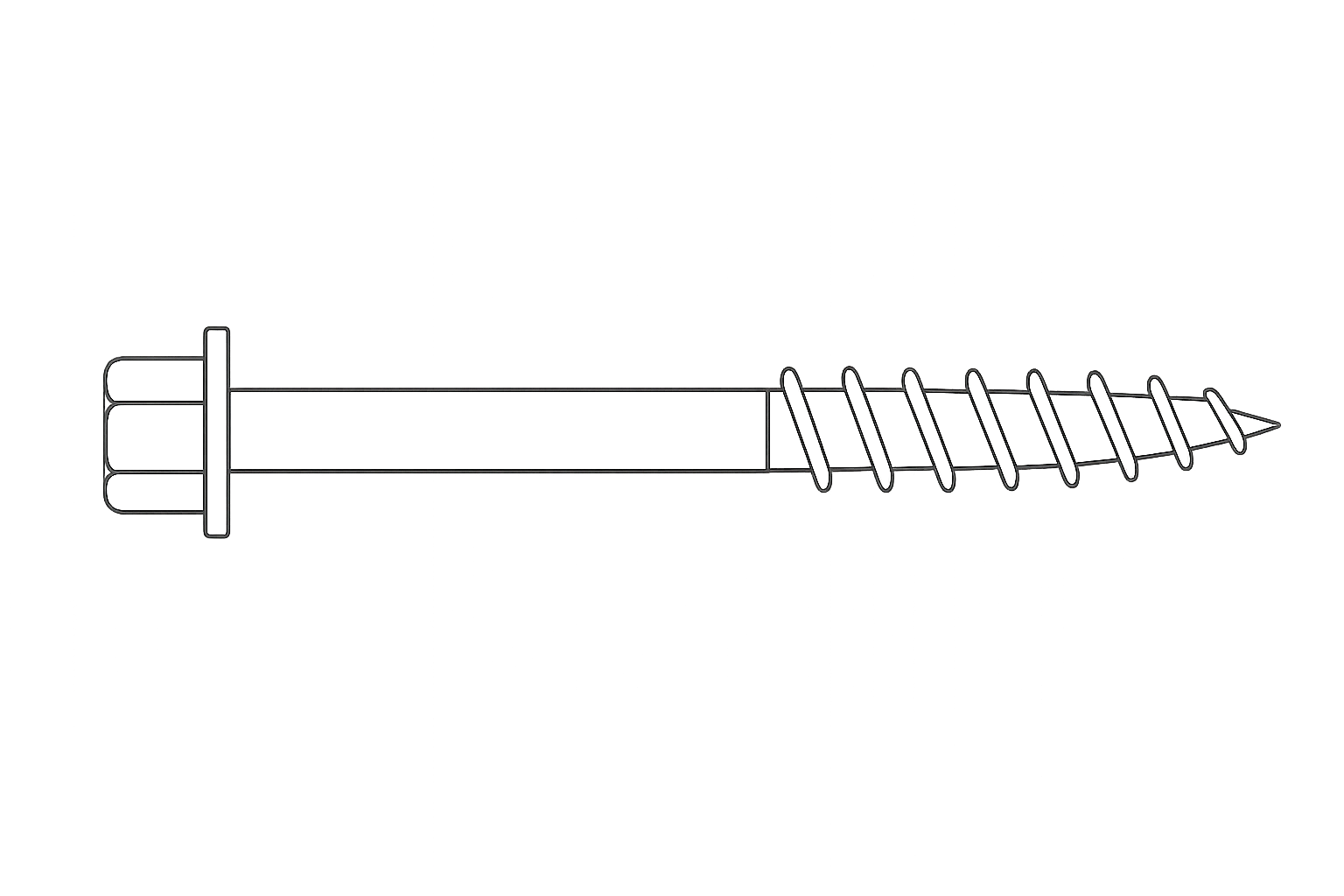

Thread Design
HEXDRIVE Pro reusable screws feature a coarse high-low thread design that lets them bite cleanly and securely into foam, plastic webs, or wood, delivering reliable and superior holding power even in thin plastic layers. #10 shaft sized for greater strength and enhanced load capacity, featuring a sharp point and a 1 3/4” long threaded section.
